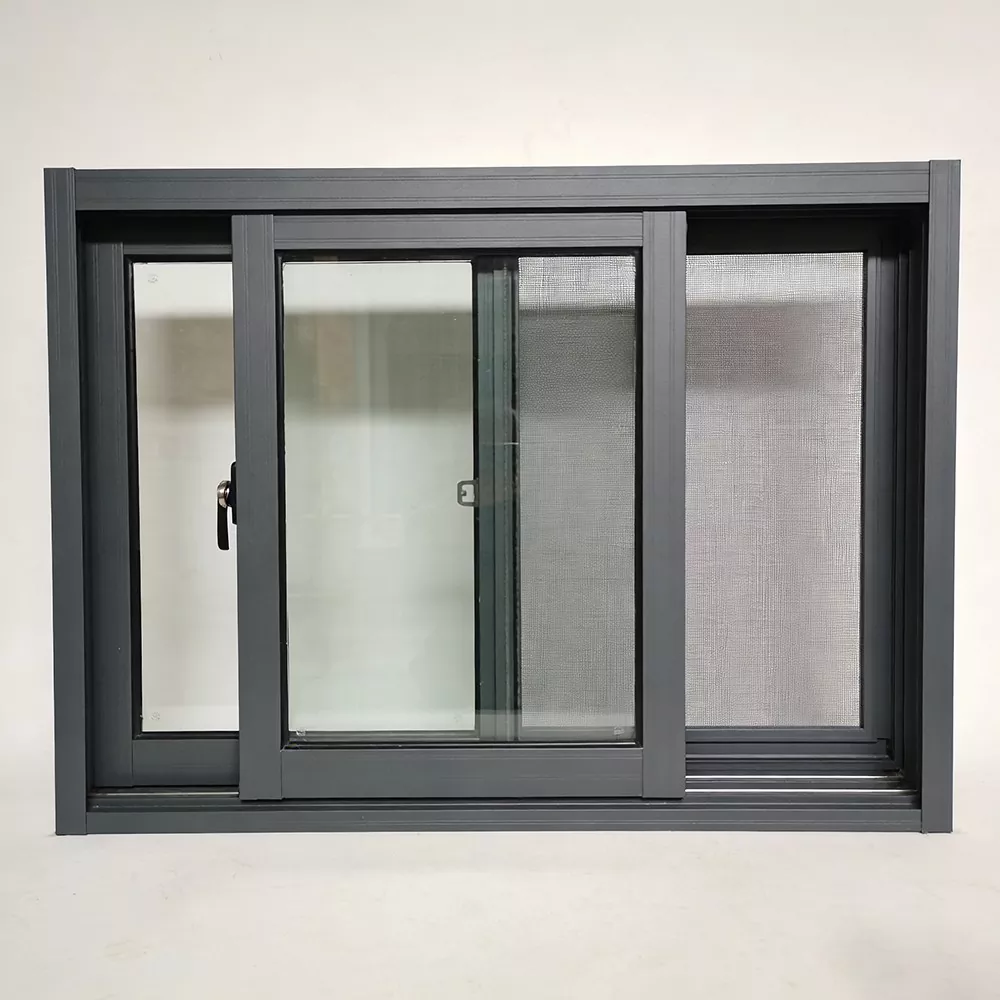

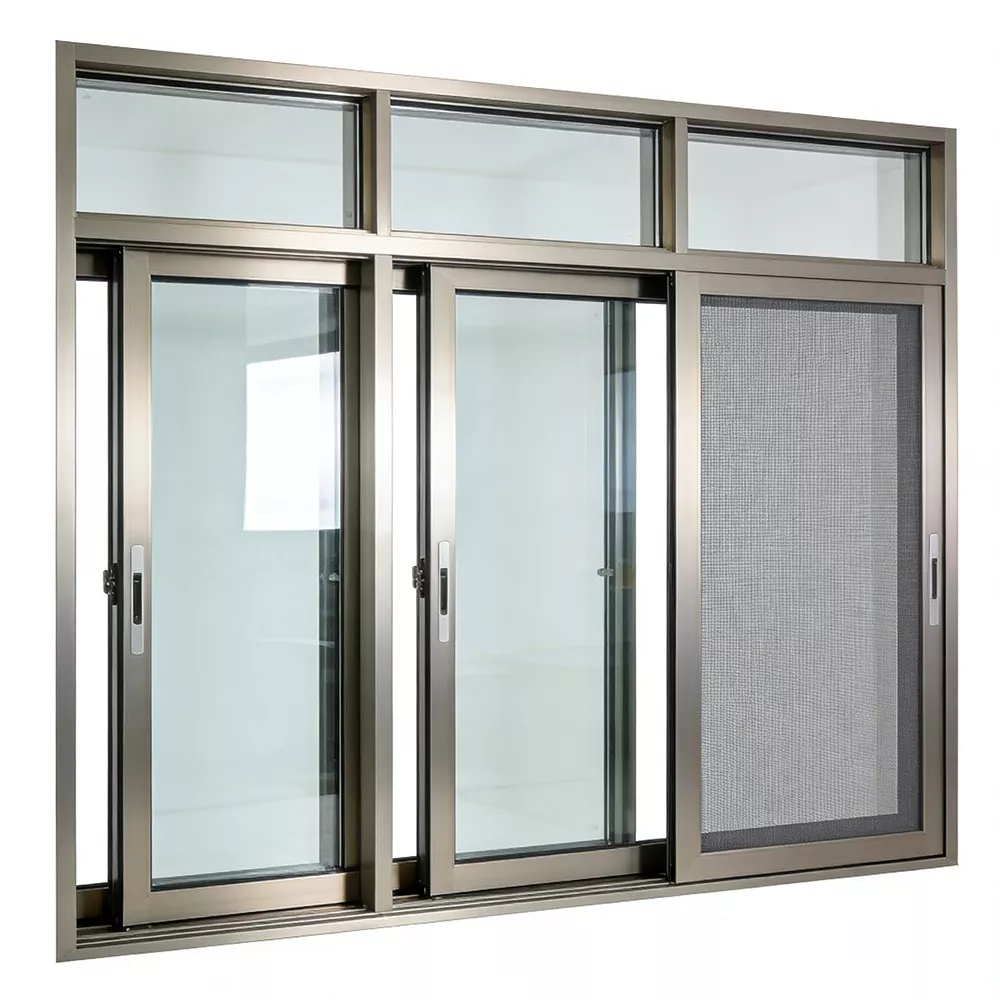

Non-Insulating Aluminum Alloy Window With Gauze

The China Non-Insulating Aluminum Alloy Windows with Gauze supplied by Guanye Factory feature 304 stainless steel double pulleys and multi-point linkage locks. The opening and closing lifespan is ≥ 10,000 times. The mesh is 304 diamond mesh (wire diameter 0.8mm), providing protection and impact resistance. It adopts high and low rails + concealed drainage and three layers of EPDM rubber strips for sealing. The water tightness is ≥ 3 levels and the air tightness is ≥ 4 levels.

Competition Advantage

1. Sturdier structure: The screw injection sealing group corner + anti-sway wheel + anti-drop block solves the problems of shaking and derailment of competitors' sliding windows.

2. Stronger sealing: High and low rails + anti-wind blocks + three layers of sealing, the leakage rate of wind and rain is 50% lower than that of ordinary sliding windows.

3. High cost performance: The non-insulating aluminum alloy window with gauze has a simplified structure, the batch engineering procurement cost is more than 30% lower than the insulated model, and it is suitable for rapid installation, saving construction time.

4. Integrated screen: The screen and glass window operate simultaneously, no need for disassembly, it is more convenient than the separate screen windows of competitors, and can also achieve mosquito prevention and theft prevention.

Customer Common Problem Solutions

1. Push-pull mechanism jamming: Remove foreign objects from the track, replace the double pulleys and adjust the height, apply silicone-based lubricant (avoid oily residue).

2. Air leakage and water leakage: Replace the aged rubber strips, install wind-proof blocks, clear the hidden drainage holes, and adjust the fit of the locking points.

3. Screen loosening: Use a combination of snap fasteners and screws for double fixation, wrap the edges of the diamond screen with rubber, and prevent deformation and detachment.

4. Strange noises and shaking: Tighten the hardware screws, replace the positioning blocks, correct the straightness of the track, and ensure that the window sash is evenly stressed.

Our Non-Insulating Aluminum Alloy Window with Gauze is suitable for batch projects such as resettlement houses, self-built houses, schools, and factories, balancing practicality and cost, and is an excellent choice for high-performance sliding windows.
