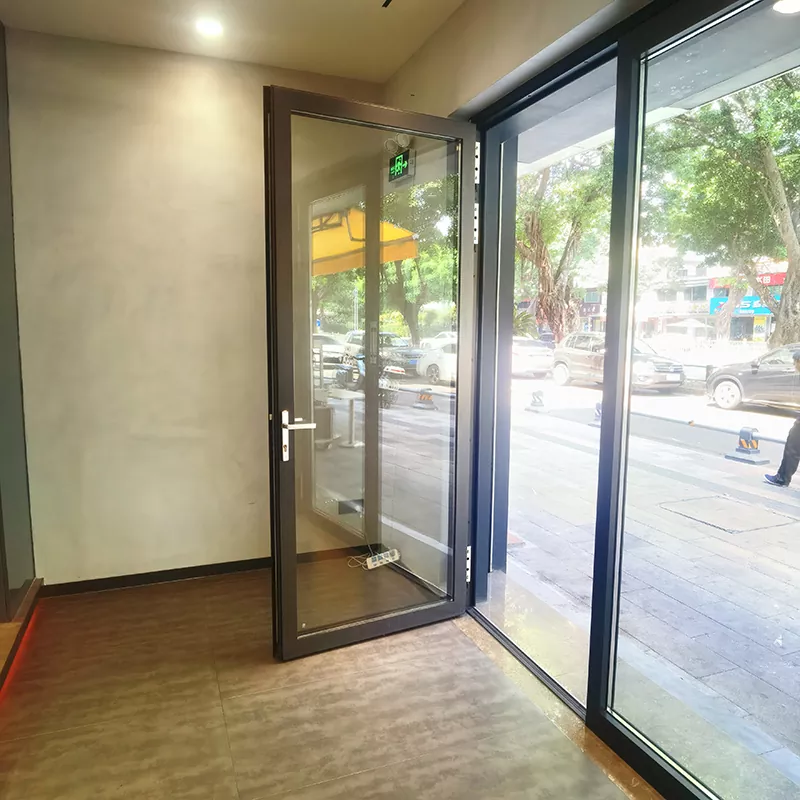

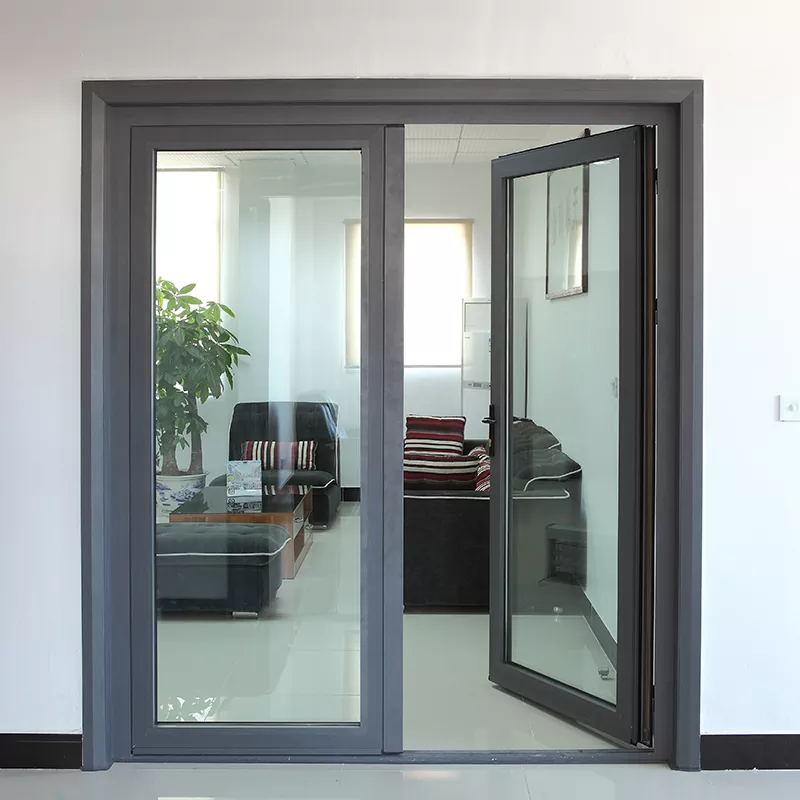

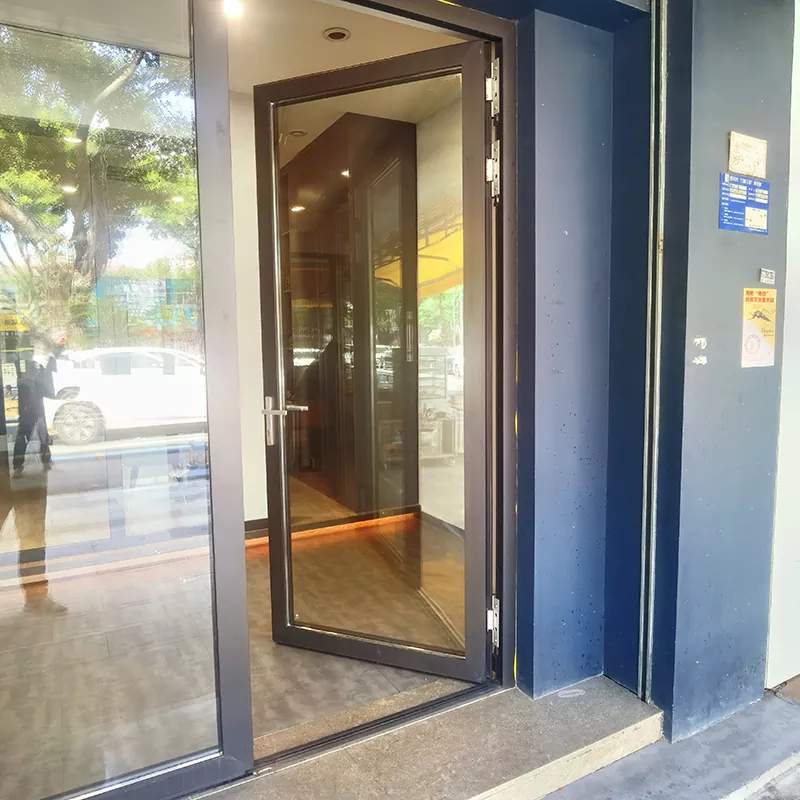

Aluminum Alloy Insulated Balcony Swing Door

The Aluminum Alloy Insulated Balcony Swing Door manufactured by Guanyi Supplier is made of 6063-T5 high-quality raw insulation aluminum alloy. The main structural part has a wall thickness of 2.2mm. It is equipped with PA66 GF25 insulation strips, forming a multi-chamber insulation and bridging structure. This effectively blocks the transmission of heat and cold, achieving better insulation in summer and better heat preservation in winter. The overall insulation K value is ≤ 2.0W/(㎡·K), and its energy-saving effect far exceeds that of ordinary aluminum alloy doors. The surface is treated with fluorocarbon spraying/vacuum wood grain transfer technology, which is resistant to weathering and corrosion, does not fade or deform, and is equipped with sealed corner brackets and concealed floor drains for drainage. The stability and waterproof performance have been comprehensively upgraded. It will not leak in heavy rain or get dusty in strong winds.

The glass is equipped with 5 + 20A + 5 laminated tempered glass. It is also available with Xinyi Low-E coating, argon gas filling, and laminated safety glass. The sound insulation can reach 35 - 42 dB, effectively blocking external noises and creating a quiet living environment. At the same time, it has explosion-proof, impact-resistant, and UV-protective functions, providing dual guarantees for safety and privacy.

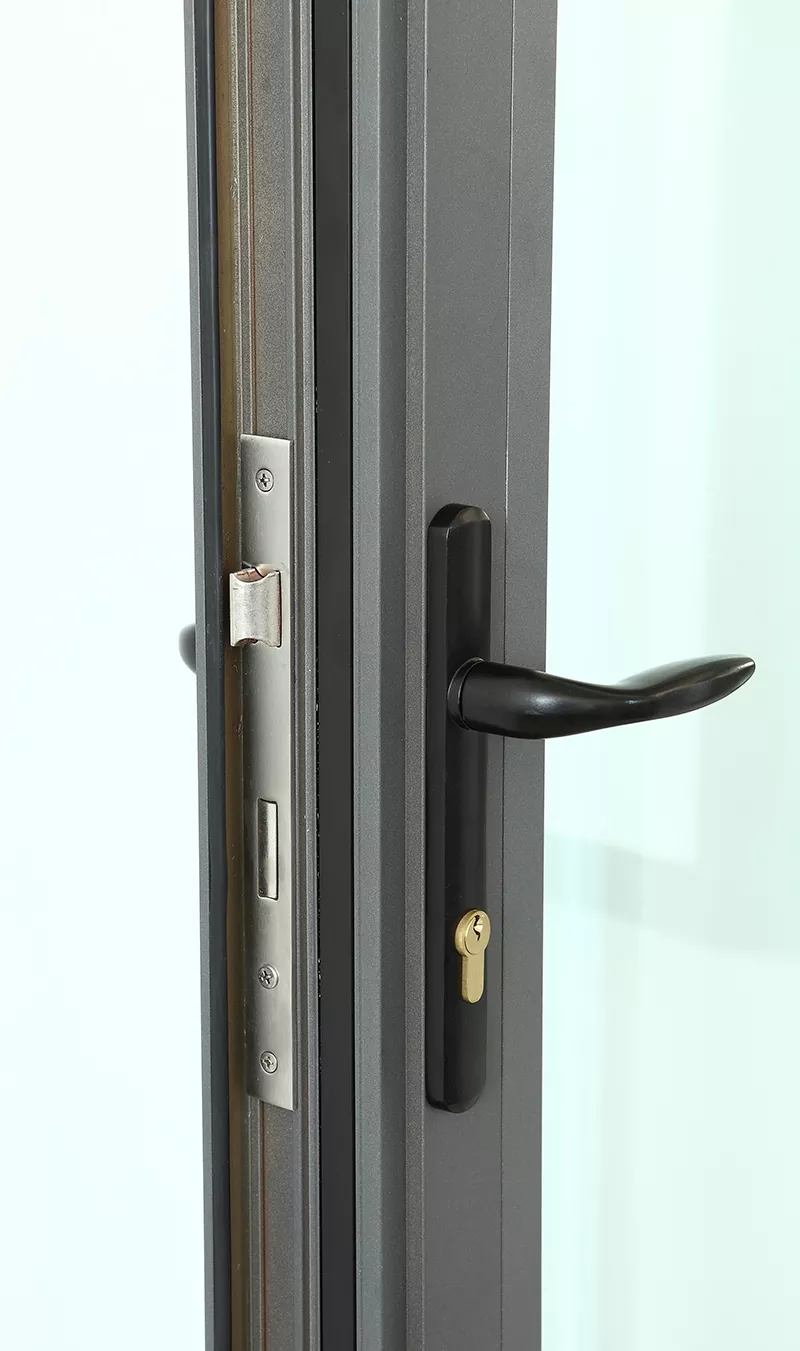

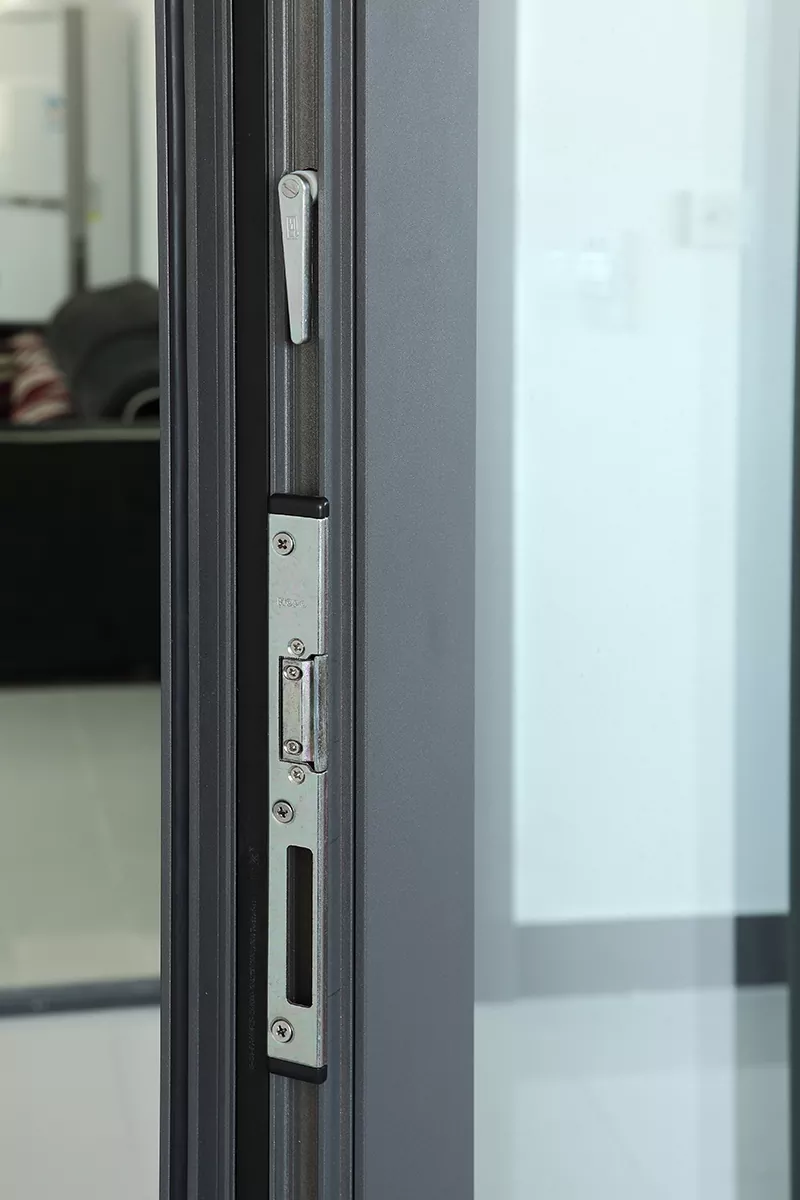

The hardware adopts brand heavy-duty sliding door hardware, 304 stainless steel hinges + multi-point safety lock body. It is smooth and quiet in opening and closing, has strong load-bearing capacity and a long lifespan. It is also equipped with three-component EPDM automotive-grade triple sealing rubber strips, achieving national standard high-level airtight and watertight performance. The sealing is more secure and the use is more reassuring. It opens smoothly without occupying much space. It can be opened at a 90° wide angle. It has excellent ventilation and lighting. The narrow design makes the view more transparent. It is suitable for various modern minimalist, luxury, and new Chinese-style decoration styles.

Core selling point

Aluminum Alloy Insulated Balcony Swing Door features strong insulation through the break-through technology, thickened profiles for stability, quiet and soundproofing, three layers of waterproof sealing, safety tempered glass, smooth and durable hardware, minimalist and high-level appearance, and customizable color and size.
