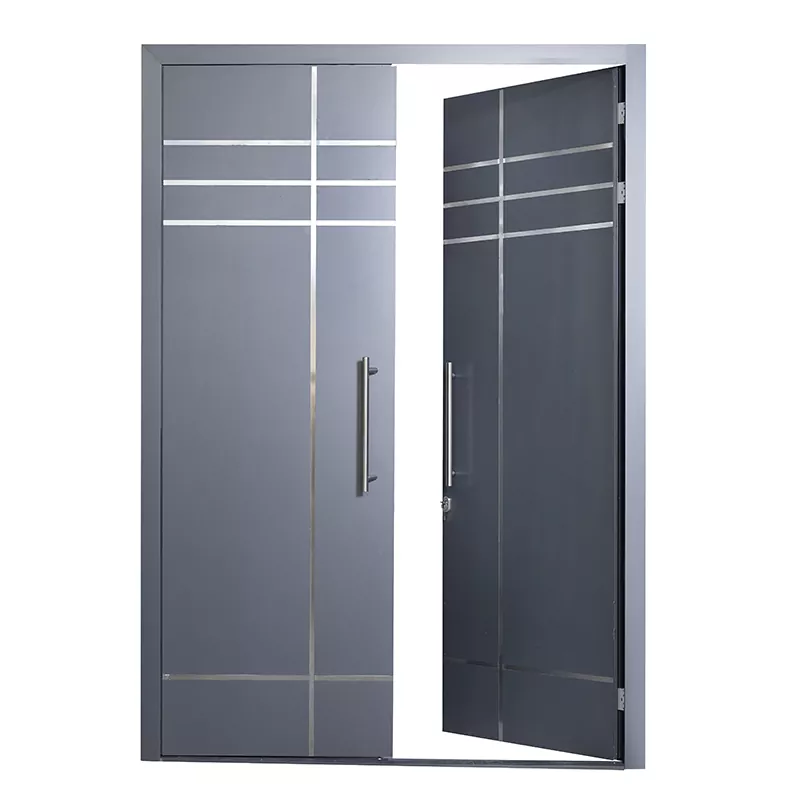

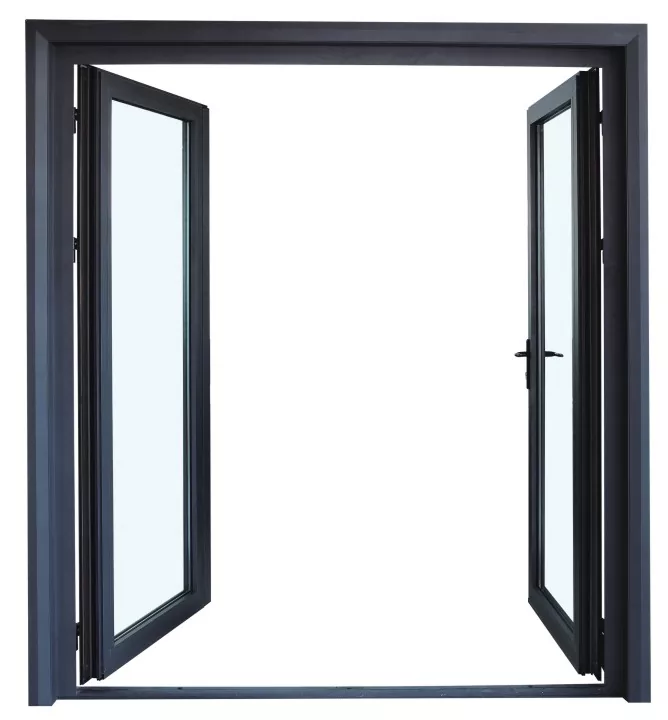

Insulated Aluminum Alloy Swing Door

The Insulated Aluminum Alloy Swing Door manufactured by Guanye Door and Window Supplier is the top choice for home decoration self-installation, refined housing projects, full-house customization, and commercial projects. With the break-through insulation technology and strict craftsmanship, it provides a high-energy-saving, highly-sealed, and highly-presentable spatial partition solution.

Send Inquiry

Product Description

Core parameters:

- Profile: The Insulated Aluminum Alloy Swing Door manufactured by Guanyi Doors & Windows Factory is made of 6063-T5 aerospace-grade raw aluminum with a wall thickness of ≥ 1.8mm and a multi-chamber structure.

- Thermal insulation system: 24mm wide three-chamber insulation strips imported from Germany, with the entire window having a K value as low as 1.8W/(㎡·K).

- Glass: Standard configuration is 5 + 20A + 5 3C tempered insulating glass, with the option of Low-E three-chamber two-chamber.

- Sealing: Polish Sanok EPDM rubber strips, three layers of sealing, airtightness level 8, water tightness 700Pa.

- Hardware: Imported multi-point locking system + 304 stainless steel hinges, single door load capacity ≤ 120kg.

- Wind pressure resistance: Level 9, suitable for high-rise buildings and typhoon-prone areas.

- Surface: Fluorocarbon / porcelain enamel / powder coating, with strong weather resistance.

Product features

Our Insulated Aluminum Alloy Swing Door adopts a break-through insulation structure to precisely cut off the heat bridge. It blocks heat in summer and retains warmth in winter, reducing air conditioning energy consumption by 40%. Three layers of sealing + concealed drainage, dust-proof, noise-reducing, waterproof and anti-seepage, with a sound insulation level of ≥ 36 dB. Thick profiles and precise angle peg injection technology, resistant to deformation and wind pressure, and will not sag over time. The minimalist narrow-edge design, combined with multiple color options, balances aesthetics and functionality.

Application scenario

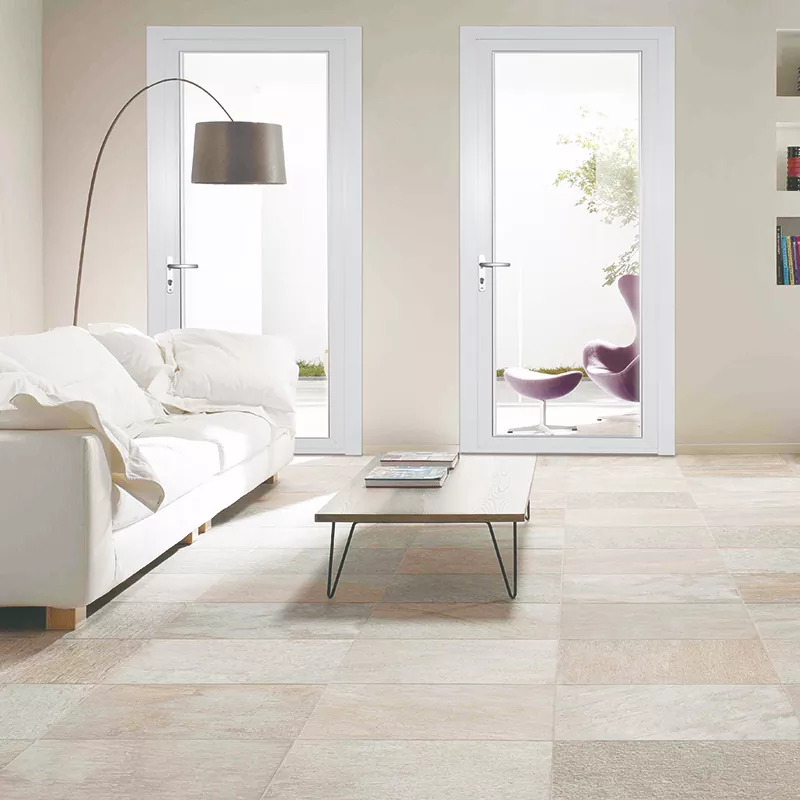

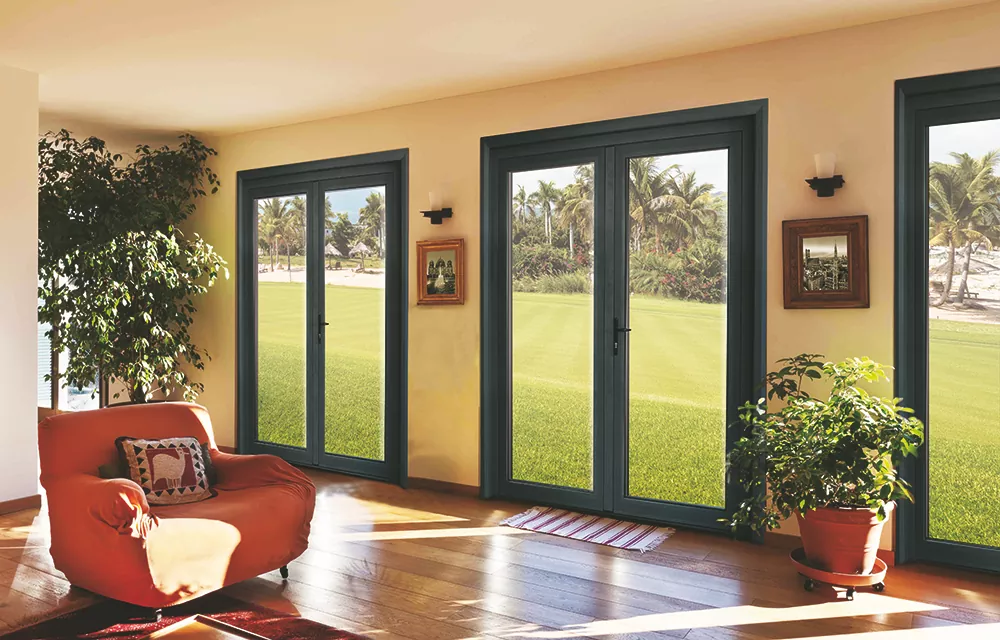

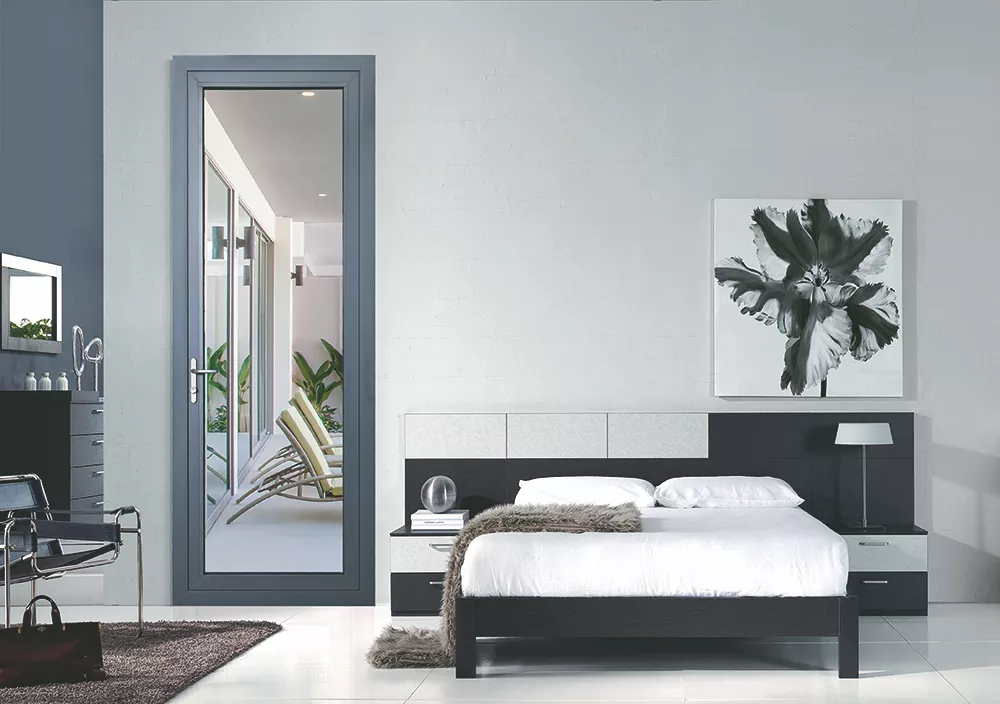

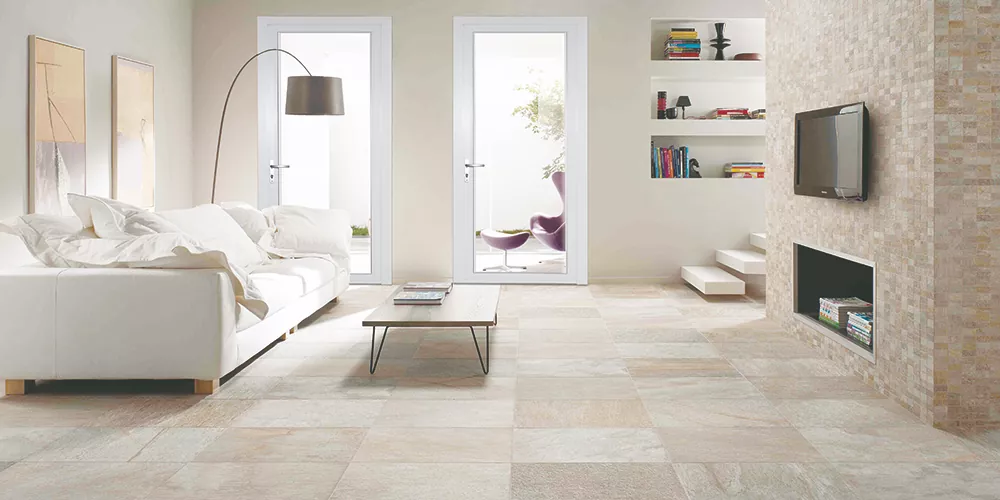

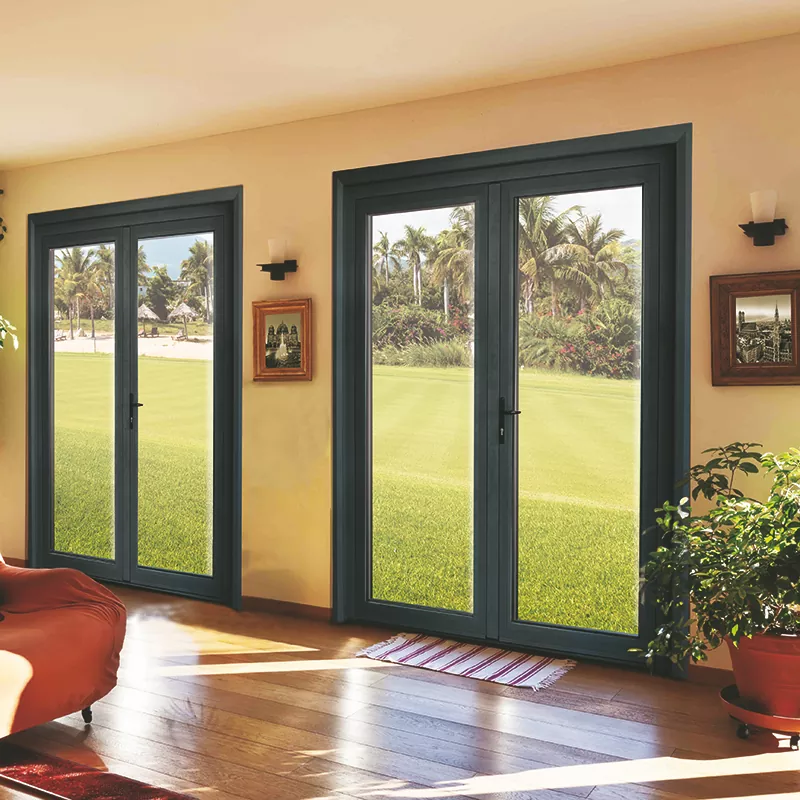

Family scenes: bedroom, study, kitchen, bathroom, balcony, suitable for modern luxury and minimalist styles.

Engineering scenes: high-end residences, apartments, hotels, office buildings, health care centers, commercial complexes.

Procurement Adaptation: The Insulated Aluminum Alloy Swing Door supports customization of size/color/opening method. For bulk purchases, you can enjoy the engineering price and standardized delivery. It is an excellent cost-effective option for building materials wholesale and engineering general contracting.
