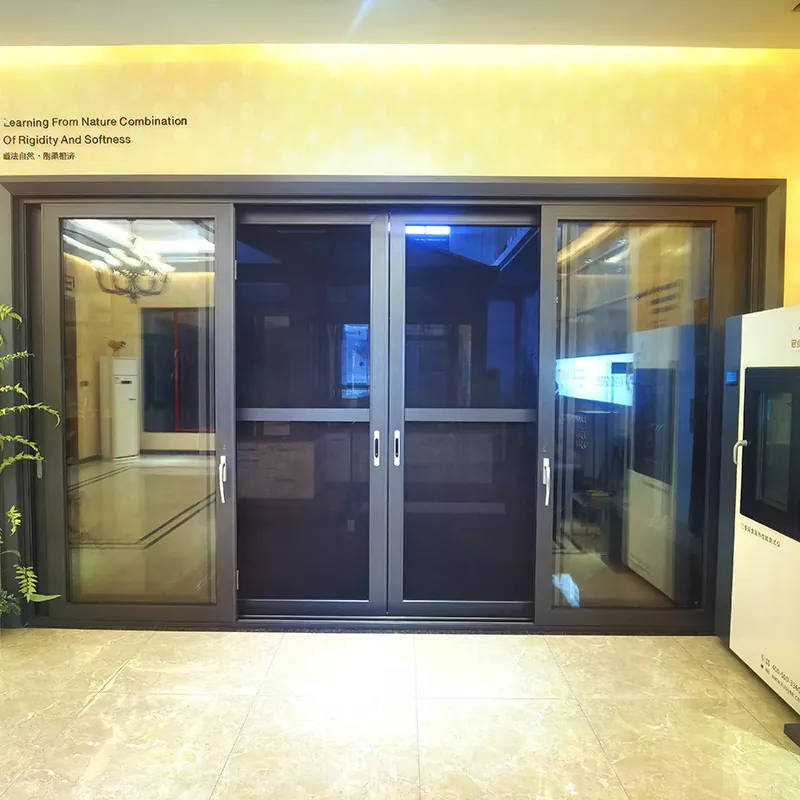

Aluminum Alloy With Insulation And Heat Shielded With Ribbon Lifting And Sliding Door

The China Aluminum Alloy With Insulation And Heat Shielded With Ribbon Lifting And Sliding Door produced by Guanye Factory uses insulated aluminum profiles with a break system, combined with a multi-chamber structure and PA66 insulation strips. This design effectively blocks the transmission of heat and cold, offering outstanding insulation and heat preservation performance. It truly achieves warm in winter and cool in summer, while being energy-efficient and environmentally friendly. The door screen is designed as an integrated unit, with the outer glass and inner screen. It is equipped with 304 diamond mesh/high-definition high-transparency mesh, providing comprehensive protection against mosquitoes, theft, and harm, while also ensuring proper ventilation and lighting.

Our Aluminum Alloy With Insulation And Heat Shielded With Ribbon Lifting And Sliding Door is equipped with an enhanced push-pull hardware system, which is easy to operate and requires minimal effort. When closed, it automatically seals tightly. It is also paired with three EPDM sealing strips. The sound insulation, water resistance, and wind pressure resistance performance meet the high standards of national regulations. Even in high-rise or coastal areas, it can be used with peace of mind. The door panel is equipped with 3C-certified laminated tempered glass, providing safety, explosion-proof protection, sound insulation, and noise reduction. The extremely narrow frame design makes the space more transparent and the appearance more upscale.

Core technical parameters

- Profile: 6063-T5 thickened insulated aluminum alloy, wall thickness ≥ 2.0mm

- Insulation: PA66 GF25 insulation strip, multi-chamber insulation structure

- Glass: 5 + 20A + 5 double-pane tempered glass, optional three-pane two-chamber

- Mesh: 304 stainless steel diamond mesh / high-definition high-transparency mesh available for selection

- Hardware: Heavy-duty lifting push-pull hardware, single door load-bearing capacity up to 300kg

- Performance: Air tightness level 8, water tightness level 7, wind resistance level 9

- Application: Balcony, living room, villa garden, large floor-to-ceiling windows, etc.

Guanye Doors and Windows offers customization services for dimensions, colors, glass and mesh. They provide factory direct supply with stable quality and quick delivery. Whether for home decoration purchases, large-scale projects or retail in stores, they are the top choice for high-performance, high-quality and cost-effective doors and windows.
