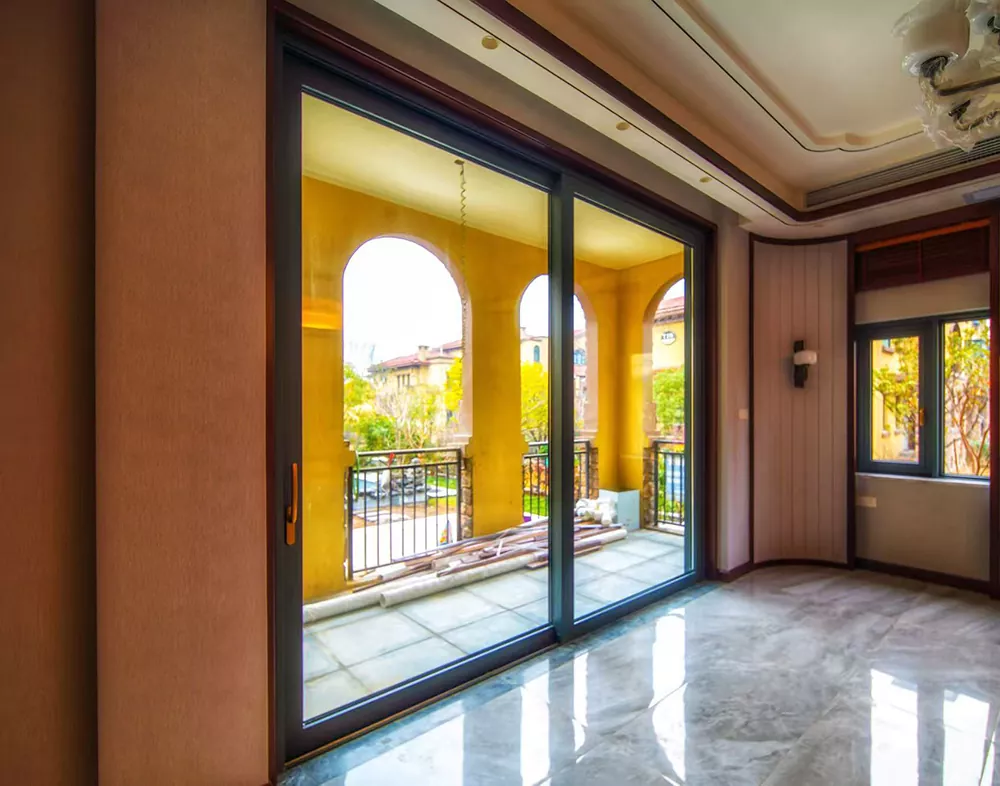

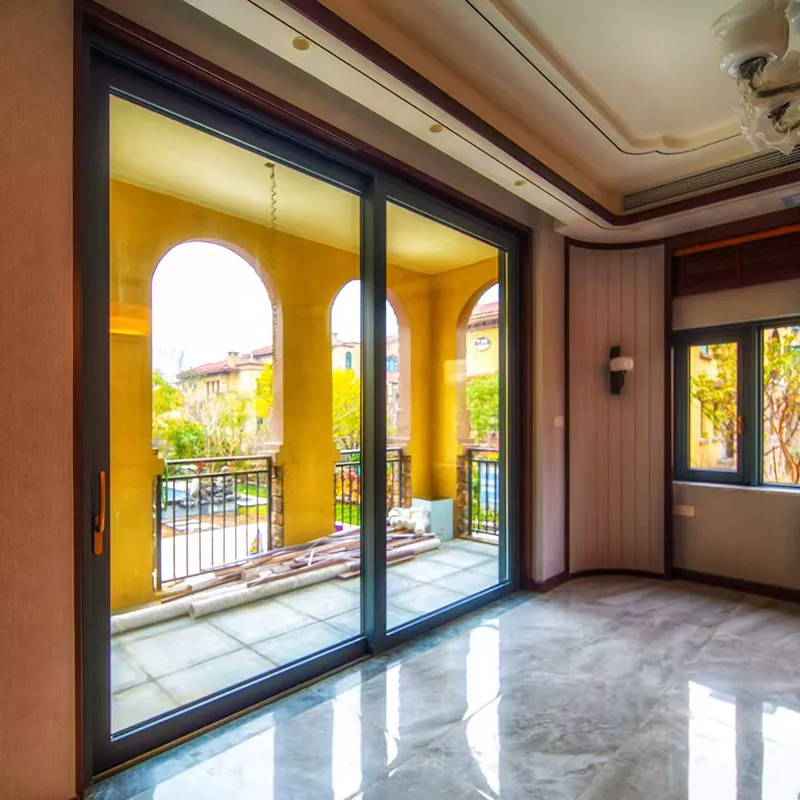

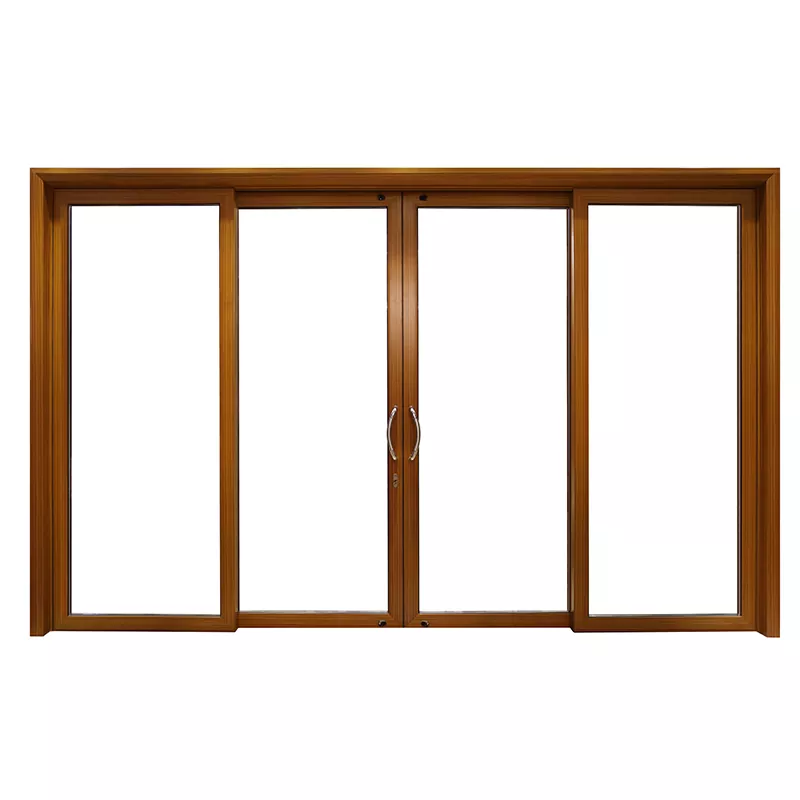

Aluminum Insulated Heat Shielding Balcony Sliding Door

Technical Specifications

- Profile: The China Aluminum Insulated Heat Shielding Balcony Sliding Door 6063-T5, supplied by Guanye Factory, uses raw insulation aluminum alloy. The main profile has a thickness of 2.2mm and a multi-chamber insulation structure. It is paired with a PA66 GF25 insulation strip.

- Glass: Standard configuration is 5 + 20A + 5 double-pane tempered glass. Optional features include Xinyi Low-E, argon gas filling, and laminated safety glass.

- Hardware: Imported heavy-duty push-pull hardware, 304 stainless steel rollers + anti-slip track + multi-point lock. Each door panel can bear a load of 120kg.

- Sealing: Three layers of EPDM (Ethylene Propylene Diene Monomer) sealing + equal pressure drainage. Air tightness ≥ 6 levels, water tightness ≥ 5 levels, wind pressure resistance ≥ 9 levels.

- Performance: Sound insulation 35-45 dB, heat insulation K value ≤ 2.0 W/(㎡·K), no malfunction after 100,000 opening and closing cycles.

- Track: High-low track / flat track are available. Hidden drainage, no water accumulation or leakage.

Core advantage

- Powerful heat insulation and energy saving: The bridge structure combined with insulating glass provides double insulation. It blocks heat in summer and retains warmth in winter, reducing air conditioning energy consumption by 30%.

- Quiet and smooth sliding: Stainless steel bearings and pulleys + buffer design ensure smooth movement with minimal noise and no shaking. Elderly and children can operate it easily.

- Safe and stable against wind: Thick profiles + sealed corner brackets + anti-slip track prevent derailment. It is sturdy and does not deform even in high-rise or coastal areas during typhoons.

- Sealing, waterproof and dustproof: Three layers of sealing + equal pressure drainage prevent water leakage during heavy rain and dust entry during strong winds. Cleaning becomes easier.

- Customizable appearance with high level of versatility: Fluorocarbon/wood grain/ceramic coating techniques are available. Dual color options for both inside and outside are available. Minimal narrow edges, providing a wider and more transparent view.

Industry-wide comparative advantages

- Compared with ordinary aluminum sliding doors: Our Aluminum Insulated Heat Shielding Balcony Sliding Door has a 100% improvement in heat insulation performance, a 40% improvement in sound insulation, and a lifespan extended to over 25 years

- Compared with inferior brand thin material sliding doors: The wall thickness is 2.0mm, meeting national standards. Most inferior brands are 1.2-1.4mm and prone to deformation; the hardware has a 10-year warranty, while inferior brands are prone to jamming and rusting

- Compared with ordinary insulating glass: We use Xinyi original sheets + tempered glass + optional Low-E, providing better explosion-proof and heat insulation. Ordinary glass is prone to self-bursting and is not energy-efficient

- Compared with conventional sealing: Three layers of EPDM sealing + equal-pressure drainage, with higher water and air tightness. Ordinary single-layer sealing leaks air and water.
