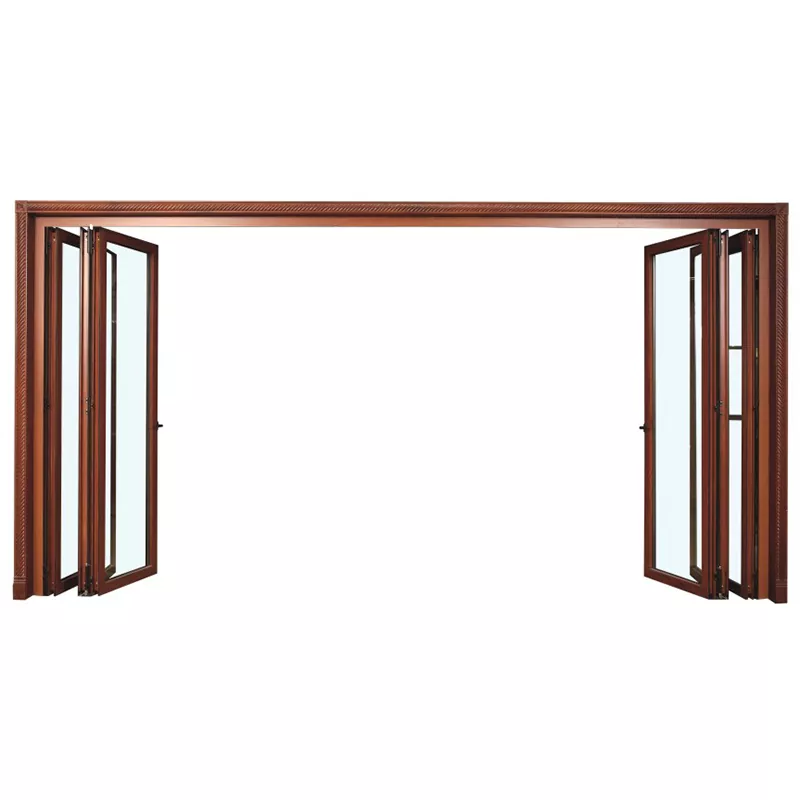

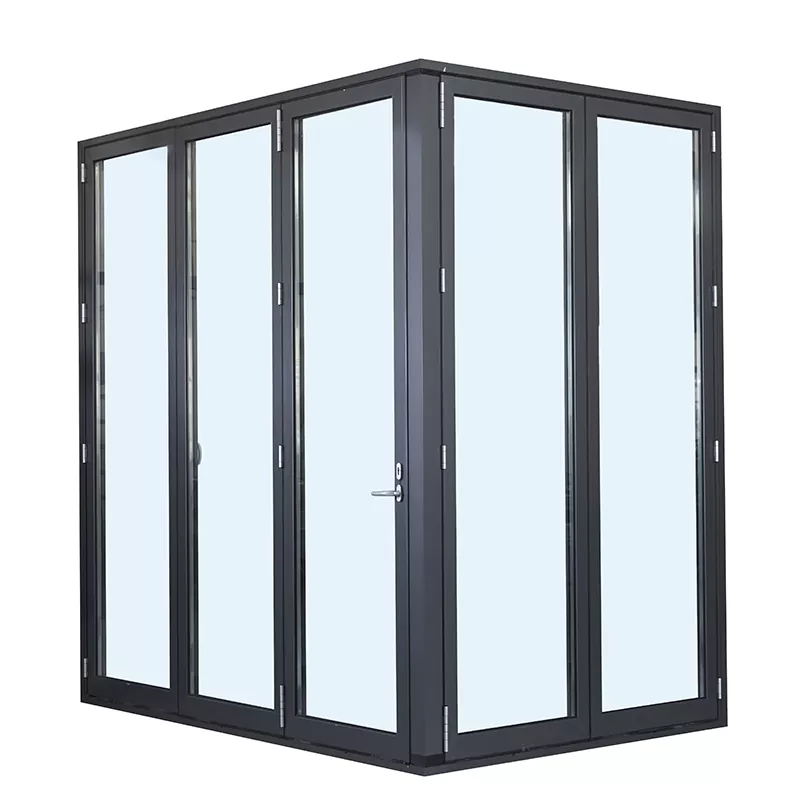

Aluminum Alloy Folding Door With Thermal Insulation

In terms of profiles, the Aluminum Alloy Folding Door With Thermal Insulation manufactured by Guanye's supplier uses 6063-T5 high-precision native aluminum alloy. The main profile has a wall thickness of 2.0mm, which complies with the national standard GB/T 8478-2020. It adopts a multi-chamber insulated bridge structure design and is paired with PA66 GF25 insulation strips, effectively blocking heat and cold conduction and achieving excellent insulation and heat preservation performance. The surface of the profile is treated with fluorocarbon spraying and wood grain transfer technology, which is resistant to weathering, corrosion, and does not fade or deform. The corners are connected by injection-molded corner brackets, providing higher strength and stronger waterproof performance. It is also equipped with a floor drain concealed drainage structure, completely solving the problem of water backflow.

The glass configuration of Aluminum Alloy Folding Door With Thermal Insulation uses Xinyi original double-pane tempered glass. The standard configuration is 5 + 20A + 5 / 5 + 27A + 5 specifications. It can be selected as Low-E double-pane, argon-filled, or laminated safety glass. It has sound insulation of 35-45 dB, a K value of ≤ 2.0 W/(㎡·K) for insulation, impact resistance, and UV protection. This not only enhances the privacy of the space but also effectively reduces energy consumption, meeting the high comfort living requirements.

The hardware system is equipped with imported heavy-duty folding door-specific hardware, including 304 stainless steel precision cast rollers, stainless steel load-bearing hinges, and multi-point safety lock bodies. Each door panel can bear a load of 80-120 kg. The opening and closing is smooth without noise, and the opening and closing test exceeds 100,000 times without failure. It is also paired with a three-component EPDM automotive-grade sealing rubber strip, achieving multiple seals, with air tightness, water tightness, and wind pressure resistance all reaching the highest national standards. The wind resistance, dust prevention, and waterproof performance are outstanding.

Core parameters

Profile: 6063-T5 insulated aluminum alloy, wall thickness 2.0mm; Insulation strip: PA66 nylon insulation strip; Glass: 5 + 27A + 5 double-pane tempered glass; Hardware: Imported heavy-duty folding hardware; Opening method: Left-right folding / Bidirectional folding; Single door load-bearing capacity: 120kg; Sound insulation: ≤ 45dB; Heat insulation K value: ≤ 2.0; Color customization available; Applicable scenarios: Home decoration, villas, shops, projects.
