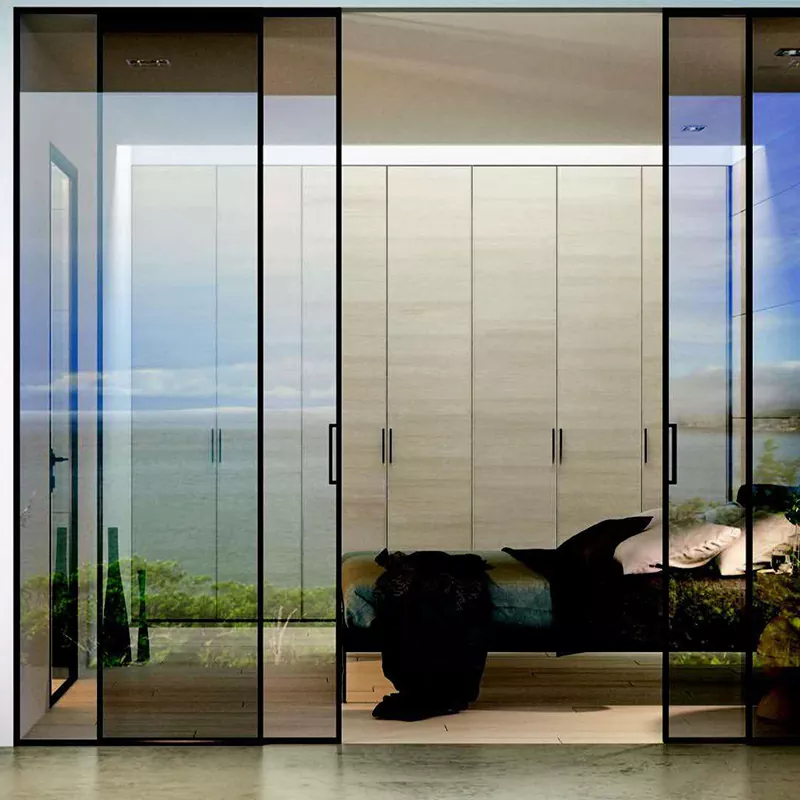

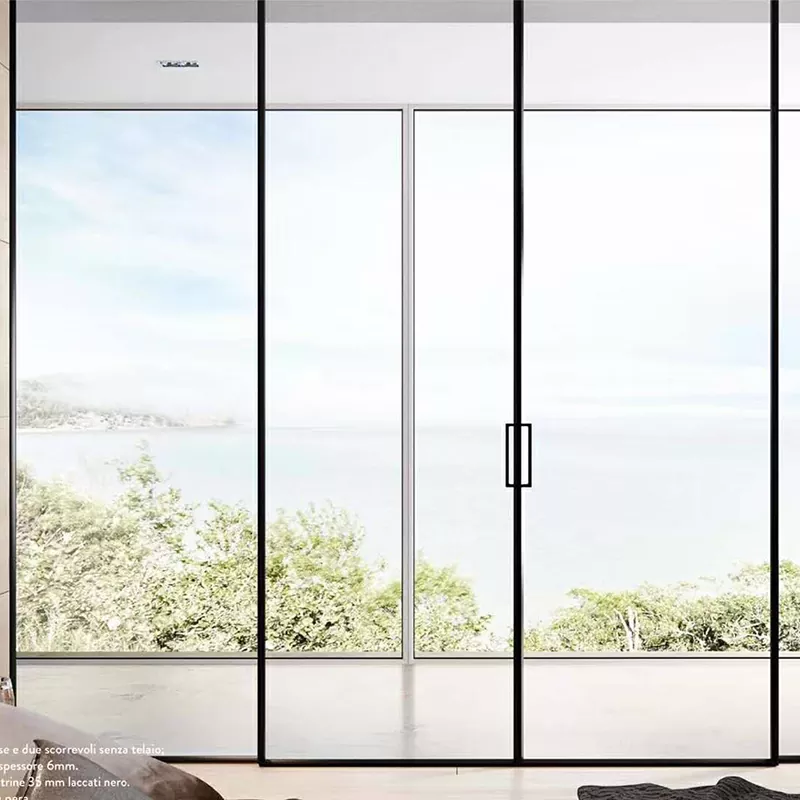

Panoramic Sliding Door

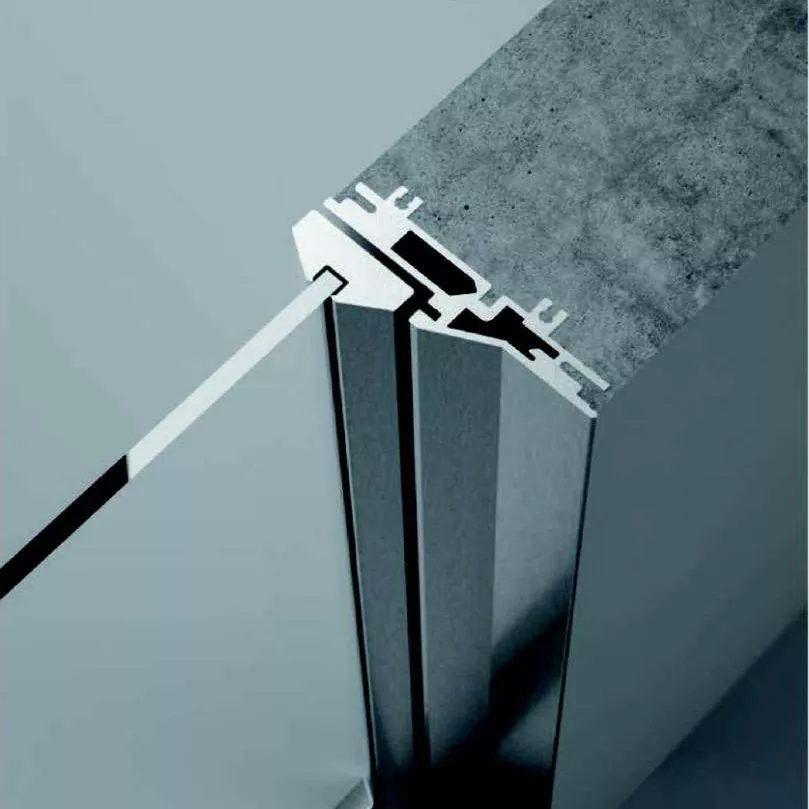

The Panoramic Sliding Door produced by Guanye's suppliers is made of 6063-T5 original insulated aluminum alloy. The main profile has a thickness of 3.0mm. It is combined with PA66 GF25 insulation strips to form a multi-chamber structure, achieving strong heat insulation and preservation. The core extremely narrow frame design results in a visible surface width of only 25mm. Combined with Xinyi tempered glass, the light transmittance exceeds 90%. This unlocks an unobstructed panoramic view. The hardware is equipped with a heavy-duty lifting and sliding system. Each door panel can bear a load of up to 200kg. The sliding is smooth and without any jamming. It has no faults after 100,000 opening and closing cycles. It is also equipped with three-component EPDM triple sealing and hidden pressure drainage. The airtight and watertight performance reaches the national standard level, with a sound insulation of 35-45dB. It completely isolates wind, rain and noise.

The product advantages are distinct: Guanye's panoramic sliding door with extremely narrow panoramic view makes the space more transparent. The insulated structure is more energy-efficient. The heavy-duty and smooth operation is more durable. The sealing and waterproofing are more reassuring. It supports large spans and personalized customization, suitable for modern, luxury and other styles.

Our Panoramic Sliding Door has a wide range of applications. It perfectly fits for balcony window sealing, living room partition, villa courtyards, sunroom viewing and commercial storefront落地 windows. Whether it is in high-rise residences or coastal typhoon areas， it can be used stably. It injects transparent aesthetics and comfortable experience into home and commercial spaces.
